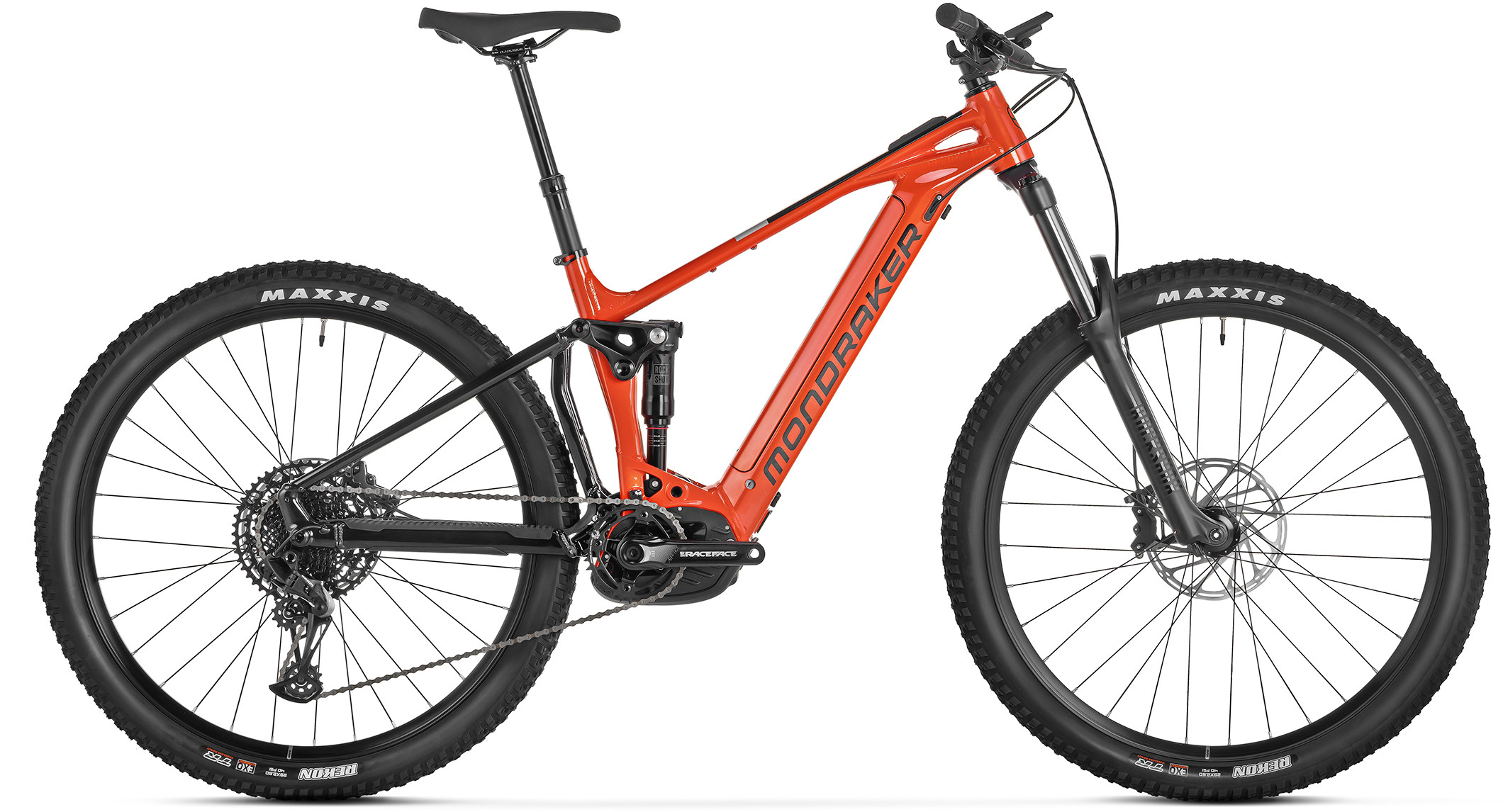

The Chaser R Flame Red M Red/Black/Silver is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
FrameChaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
SizesS: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shockRockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Shock settingsLight compression, Linear rebound, 1 Token
ForkRockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
HeadsetOnoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
StemOnoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HandlebarOnoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GripsOnoff Twin, 1lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SaddleMDK ebike black
Front brakeSram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brakeSram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake leverSram DB8, tool reach adjust, lever pivot bushings
RimsMavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SpokesMavic J-bend double butted, contactless lacing
Front hubMavic, Boost 15x110mm, IS 6 bolts Rear hubMavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tireMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead Rear tireMaxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
CranksetRace Face Aeffect ebike, 165mm RingsSram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
ChainSram SX Eagle, 12s, Powerlock
Rear derrailleurSram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift leversSram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
CasetteSram PG-1210, 11-50T, 12s
Derailleur hangerMondraker M068
Weight25,4 kg
DisplayBosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
MotorBosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
BatteryBosch Powertube 625WhPlease note: Manufacturers can sometimes change the specification of the products from time to time.
