Crafty Carbon R is your ticket to ride Mondraker’s best range of ebikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold
Components
FrameCrafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
SizesS: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shockFox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Shock settingsCS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
ForkFox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
HeadsetAcros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
StemOnoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
HandlebarOnoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
GripsOnoff Forest, CNC lock-on, 135mm
SeatpostOnoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
SaddleErgon SM-10
Front brakeShimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brakeShimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake leverShimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
RimsMavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SpokesMavic J-bend double butted, contactless lacing
Front hubMavic, Boost 15x110mm, IS 6 bolts Rear hubMavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tireMaxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead Rear tireMaxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CranksetRace Face Aeffect-R ebike, 160mm RingsRace Face, 34T, steel, direct mount
ChainShimano XT M8100, 12s
Rear derrailleurShimano XT M8100, SGS, Shadow+
Shift leversShimano XT M8100, Rapid Fire Plus, 12s
CasetteShimano XT M8100 10-51T Hyperglide+, 12s
Derailleur hangerSram UDH
Weight23,9 kg
DisplayPurion 400 / Bosch Mini Remote / Bosch System Controller
MotorNew Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
BatteryBosch Powertube 800WhPlease note: Manufacturers can sometimes change the specification of the products from time to time.

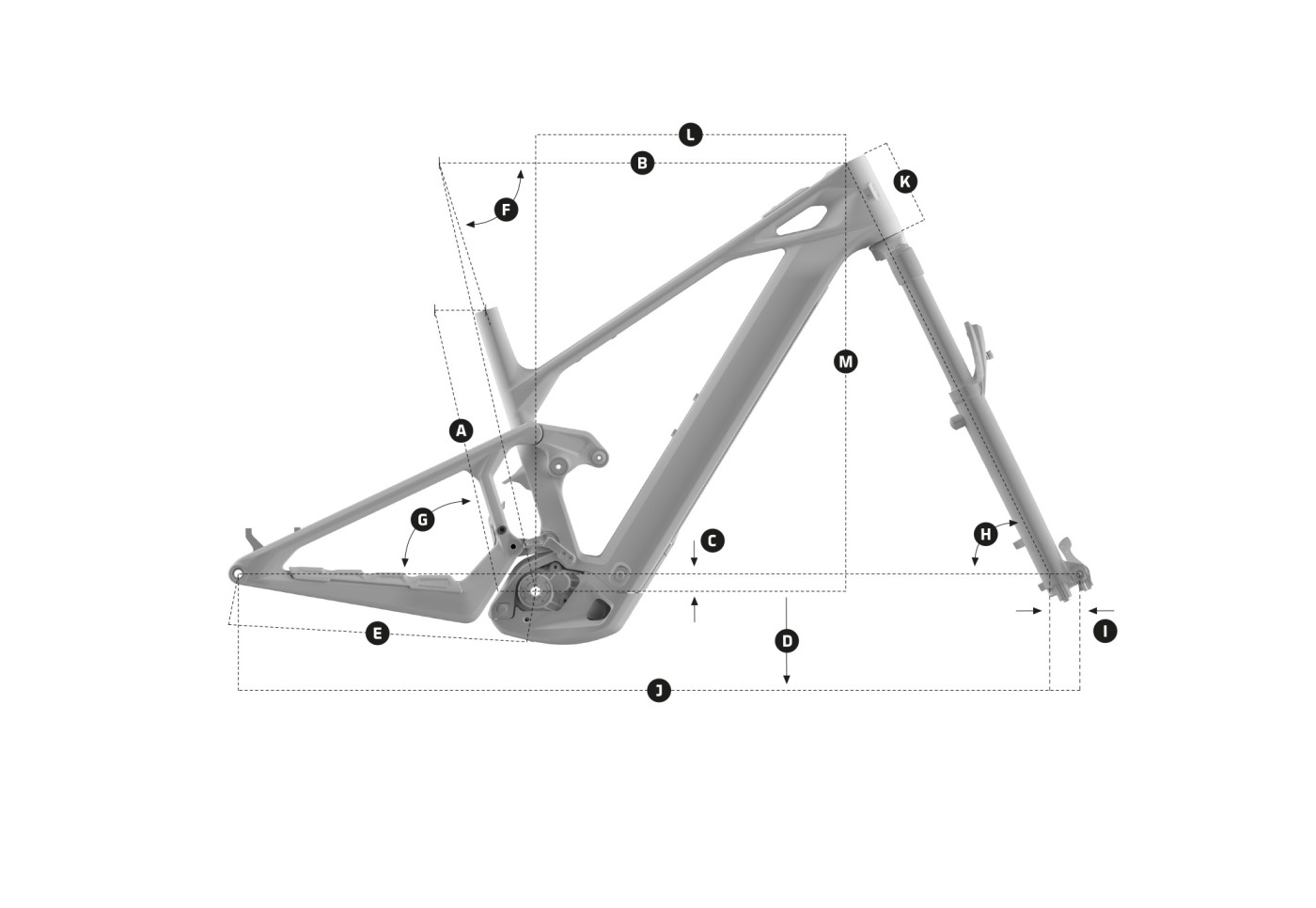

| Frame size | S [Std/Low] | M [Std/Low] | M/L [Std/Low] | L [Std/Low] | XL [Std/Low] | |
|---|---|---|---|---|---|---|
| A | Seattube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| B | Toptube length | 581 mm/582 mm | 596 mm/597 mm | 618 mm/619 mm | 640 mm/641 mm | 662 mm/663 mm |
| C | Bottom bracket drop | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm | -25 mm/-30 mm |
| D | Bottom bracket height | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm | 350 mm/345 mm |
| E | Chainstay length | 455 mm/456 mm | 455 mm/456 mm | 455 mm/456 mm | 465 mm/466 mm | 465 mm/466 mm |
| F | Seat tube angle | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° | 73°/72.65° |
| G | Effective seattube angle | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° | 77.95°/77.6° |
| H | Headtube angle | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° | 64.5°/64.15° |
| I | Fork Offset | 44 mm | 44 mm | 44 mm/44 mm | 44 mm | 44 mm/44 mm |
| J | Wheelbase | 1240 mm/1241 mm | 1255 mm/1256 mm | 1280 mm/1281 mm | 1314 mm/1315 mm | 1338 mm/1339 mm |
| K | Headtube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| L | Reach | 445 mm/441 mm | 460 mm/456 mm | 480 mm/476 mm | 500 mm/496 mm | 520 mm/516 mm |
| M | Stack | 638 mm/641 mm | 638 mm/641 mm | 647 mm/650 mm | 656 mm/659 mm | 665 mm/668 mm |
